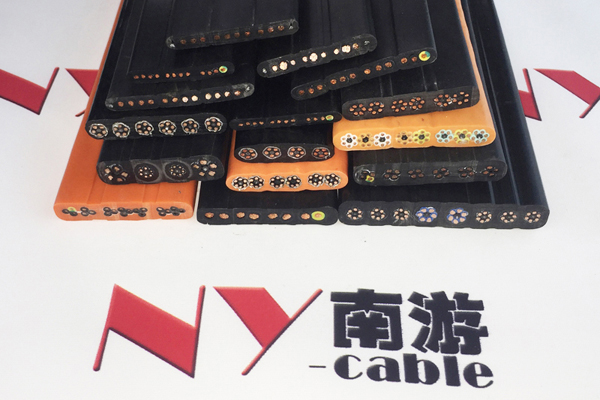

行车扁电缆-柔性抗拉双钢丝扁电缆加强抗拉承载电缆运行过程产生的拉力，保证电缆不受外力损伤。作为连接各类频繁移动式电气设备的铜芯软电缆可广泛应用于各类重型机械设备使用。
行车扁电缆-柔性抗拉双钢丝扁电缆-典型应用

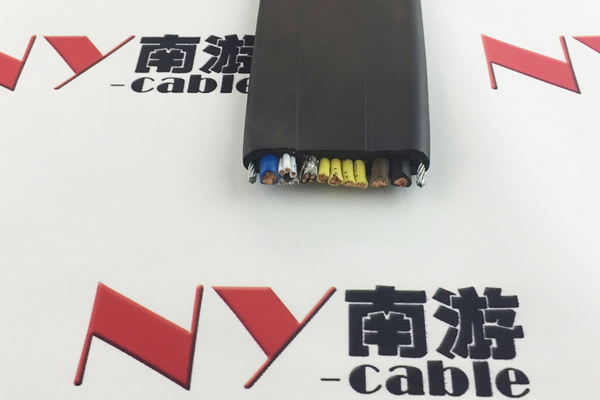

作为连接各类频繁移动式电气设备的铜芯软电缆，电缆内可置高强度钢丝，加强其所承受之张力延长电缆使用寿命，可广泛应用于起重行车、行吊天车、台车、传输机械和各种探伤设备，该类扁电缆也可作为自承式井道或倾斜式货架的安装，动力传输线及控制、照明和通讯线路的使用。既可以在油污、腐蚀气体/雾态较恶劣的室内使用，又可以在起重机、码头等露天环境下使用。行车扁电缆-柔性抗拉双钢丝扁电缆-电缆结构
导体：多股精绞无氧裸铜丝 符合VDE0295 CLASS 5或6类标准护套颜色：黑色（RAL9005）灰色（RAL7001）橙色（RAL2003）
技术参数
额定电压：Uo/U 450/750V
|
芯线数×截面积mm2 |
外径 mm |
用铜量 |
电缆重量 |
|
8G25.0 |
88.2×12.8 |
2010 |
3031.0 |
|
9G25.0 |
98.0×12.8 |
2261.2 |
3385.0 |
|
|
|
|
|
|
3G25.0 |
44.4×12.8 |
753.7 |
1445.0 |
|
4G25.0 |
58.2×12.8 |
1005 |
1875.0 |
|
5G25.0 |
68.0×12.8 |
1256.2 |
2230.0 |
|
6G25.0 |
77.8×12.8 |
1507.5 |
2584.0 |
|
7G25.0 |
87.6×12.8 |
1758.7 |
2939.0 |
|
|
|
|
|
|
3G35.0 |
40.6×15.2 |
1057.5 |
1645.0 |
|
4G35.0 |
56.6×15.2 |
1410.0 |
2245.0 |
|
5G350 |
68.6×15.2 |
1762.5 |
2755.0 |
|
6G35.0 |
82.6×15.2 |
2115.0 |
3311.0 |
|
7G35.0 |
92.6×15.2 |
2467.4 |
3777.0 |
|
|
|
|
|
|
3G35.0 |
55.2×15.2 |
1057.5 |
1993.0 |
|
4G35.0 |
67.6×15.2 |
1410.0 |
2593.0 |
|
5G35.0 |
81.8×15.2 |
1762.5 |
3104.0 |
|
6G35.0 |
92.2×15.2 |
2115.0 |
3615.0 |
|
|
|
|
|
|
3G50.0 |
51.4×17.4 |
1507.5 |
2360.0 |
|
4G50.0 |
67.6×17.4 |
2010.0 |
3119.0 |
|
5G50.0 |
81.8×17.4 |
2512.5 |
3828.0 |
|
6G50.0 |
96.0×17.4 |
3015.0 |
4536.0 |
|
|
|
|
|
|
3G50.0 |
63.0×17.4 |
1507.5 |
2756.0 |
|
4G50.0 |
79.2×17.4 |
2010.0 |
3505.0 |
|
|
|
|
|
|
3G70.0 |
56.8×19.4 |
2016.0 |
3071.0 |
|
4G70.0 |
74.8×19.4 |
2688.0 |
4065.0 |
|
5G70.0 |
90.8×19.4 |
3360.0 |
5002.0 |
|
|
|
|
|
|
3G70.0 |
68.4×19.4 |
2016.0 |
3491.0 |
|
4G70.0 |
86.4×19.4 |
2688.0 |
4485.0 |
|
|
|
|
|
|
3G95.0 |
63.0×21.6 |
2736.0 |
3959.0 |
|
4G95.0 |
83.0×21.6 |
3648.0 |
5244.0 |
|
5G59.0 |
101.0×21.6 |
4560.0 |
6466.0 |
|
|
|
|
|
|
3G95.0 |
74.6×21.6 |
2736.0 |
4417.0 |
|
4G95.0 |
94.6×21.6 |
3648.0 |
5684.3 |
|
|
|
|
|
|
3G120.0 |
74.0×26.0 |
3456.0 |
5232.0 |
|
4G120.0 |
97.0×26.0 |
4608.0 |
6912.0 |
|
5G120.0 |
118×26.0 |
5760.0 |
8518.0 |
|
|
|
|
|
|
3G120.0 |
89.0×26.0 |
3456.0 |
5940.0 |
|
4G120.0 |
112×26.0 |
4608.0 |
7620.0 |
|
|
|
|
|
|
3G150.0 |
77.0×27.0 |
4320.0 |
6065.0 |
|
4G150.0 |
101×27.0 |
5760.0 |
8019.0 |
|
5G150.0 |
123×27.0 |
7200.0 |
9897.0 |
