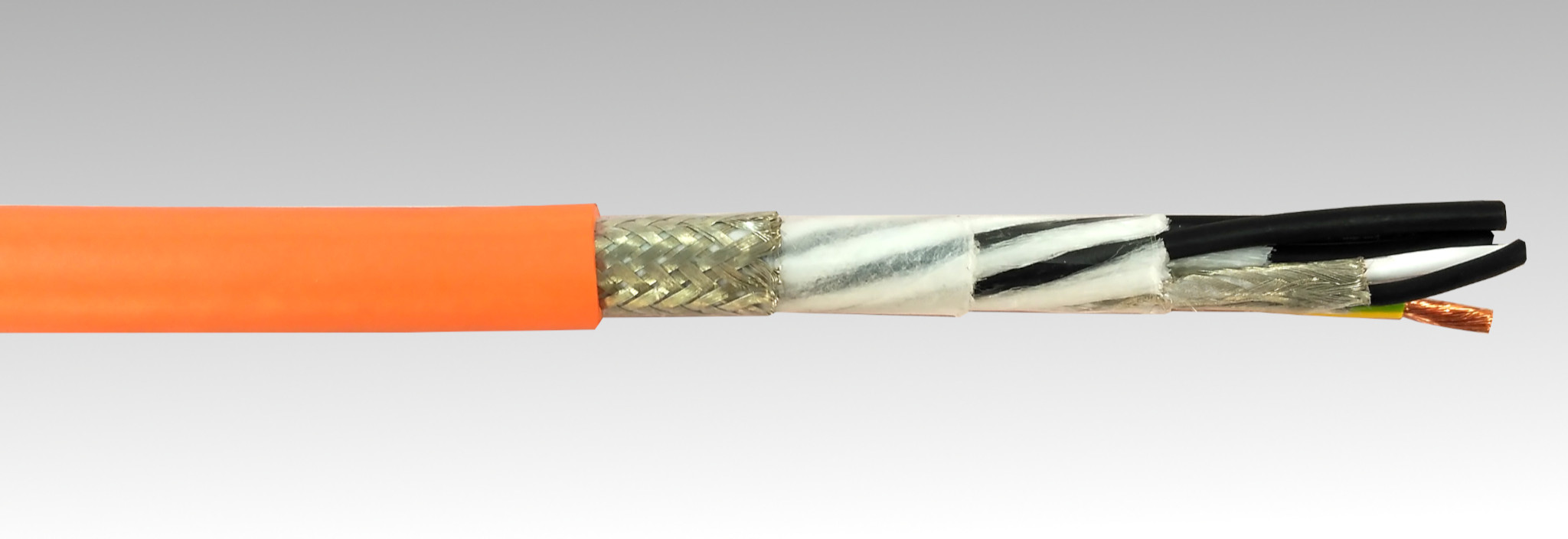

伺服动力电缆适用于伺服电机控制精度的电源线。这些电缆专门设计用于动力链，自动搬运，机器人，机床和加工机械以及加工。使用的材料可确保对矿物油，润滑脂，冷却液和液压油的耐受性。低容量电缆，配有防电磁干扰（EMC）保护屏蔽。聚氨酯材料外护套可增加电缆的耐磨性和耐候性。
Power cable suitable for servo motor control accuracy. The cables have been specially designed for use in power chains, automatic handling, robots, machine tools and processing machines and machining. The materials used guarantee resistance to mineral oils, greases, coolants and hydraulic fluids. Low capacity cables equipped with protective shield against electromagnetic interference (EMC). Polyurethane cover to increase resistance to abrasion and weathering.
技术特点 Technical characteristics
1. 工作电压Operating voltage
1000 V（1.0mm²的截面）1000 V (Sections from 1,0mm²)
2. 测试电压Test Voltage
4000 V（1.0mm²的截面）4000 V (Sections from 1,0mm²)
3. 最小弯曲半径 Min. bending radius
固定安装：5xD Fixed installation: 5xD
移动电缆：Moving cable:
·从1,5mm²到16mm²：7.5xD · From 1,5mm² to 16mm²: 7,5xD
·从25mm²：10xD· From 25mm²: 10xD
4. 工作温度（导体）Operating Tª (conductor)
-40°C至+ 80°C
5. 最大循环弯曲次数Bending cycles, max.
6.000.000
6. 最大链速Maximum chain speed
300 m/min
7. 最大加速度Maximum acceleration
50 m/s²
8. 最大链长Maximum chain length
10米（水平）10 m (horizontal)
结构 Structure
1. 导体 Conductor
超柔性裸铜丝Extra flexible bare copper wires
2. 绝缘 Insulation
PE，TPE
识别 Identification:
电源：黑色编号（1-2-3）+黄色/绿色Power: Black numbered (1-2-3) + Yellow/green
控制Control:
·1对：黑色，白色 · 1 pair: Black, White
·2对：黑色编号（5-6,7-8）· 2 pairs: Black numbered (5-6, 7-8)
3. 装配Assembly
屏蔽控制对和电源绝缘导线连接在一起+在机组上缠绕无纺布带，最后填充在空隙中
Screened control pairs and power insulated conductors cabled together + wrapping of non woven tape over the set with eventual fillings in the interstices
4. 组成Composition
电源：绝缘导体 Power: Insulated Conductors
控制：双绞线 Control: Twisted pairs
5. 总屏蔽 Overall screen
镀锡铜丝编织 Tinned copper wire braid
覆盖率：85％ Coverage: 85%
+无纺布胶带 + non woven tape
6. 外护套 Outer sheath
聚氨酯 橙色 RAL 2003 Polyurethane Orange RAL 2003
7. 分组屏蔽 Pair Screen
单独在每个控制对上Individually over every control pair:
镀锡铜丝编织 Tinned copper wire braid
覆盖率：85％ Coverage: 85%
标准/属性 Standards / Properties
1.参考文件 Ref. for construction/drawing
根据UL 758，UL 1581和CSA 22.2 210.2
（UL 80°1000V - CSA AWM I / II A / B 80°C 1000V）
根据NFPA 79-2012第12.9章
According UL 758, UL 1581 and CSA 22.2 210.2
(UL 80° 1000V - CSA AWM I/II A/B 80°C 1000V)
According NFPA 79-2012 Chapter 12.9
2. 阻燃 Flame Retardant
UNE-EN 60332-1 (IEC 60332-1) ; CEI 20-35 ; UL VW-1 ; CSA FT1
3. 无卤素 Halogen free
UNE-EN 60754-1 (IEC 60754-1) ; CEI 20-37
4. 耐油和碳氢化合物 Oil and hydrocarbon resistant
UL 1581 ; VDE 0472 part 803 A/B ; HD 22.10 S1 ; CNOMO E.03.40.150N
5. 防水Water resistant
UL 1581 ; IEC 60811
