PUR聚氨酯护套拖链电缆-超柔韧性高耐磨和抗弯曲电缆

类别:拖链电缆日期:2019-08-19
我要分享

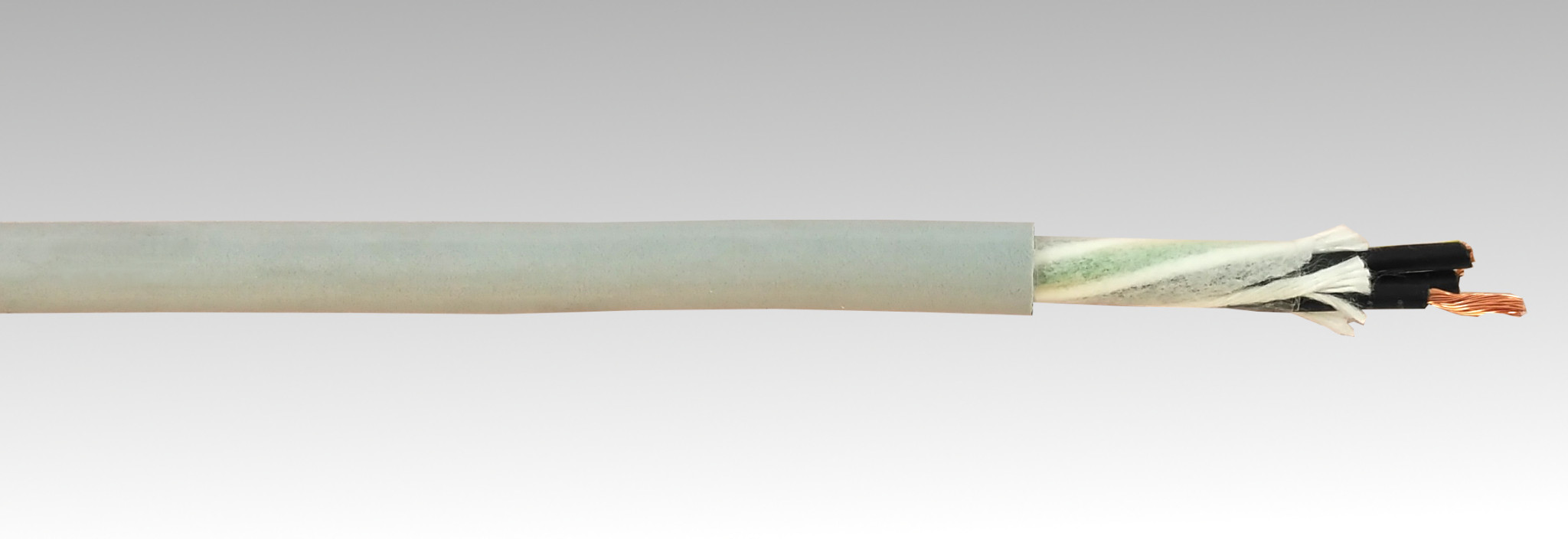

PUR聚氨酯护套拖链电缆-超柔韧性高耐磨和抗弯曲电缆

专为工业过程设计的电源和控制电缆。在动态安装中具有超柔韧性和高耐磨性和抗弯性,特别推荐在需要良好电磁保护的情况下用于拖链设备中。同样,由于其具有紫外线辐射,臭氧和防潮性,该电缆也可用于户外应用。
Extra-flexible shielded control cable for use in dynamic applications such as moving parts of machines or cable chains without tensile stress, in indoor installations. Flame retardant and resistant to most oils and chemicals generally used in the industrial field.



技术特点 Technical characteristics


1. 工作电压 Operating voltage

300 V:0.5mm²(AWG21)至1,0mm²(AWG18)

300 V : Sections from 0,5mm² (AWG21) to 1,0mm² (AWG18)

1000 V的截面:截面>1,0mm²(AWG18)

1000 V : Sections > 1,0mm² (AWG18)


2. 测试电压 Test Voltage

2000 V:0.5mm²(AWG21)至1,0mm²(AWG18)

2000 V : Sections from 0,5mm² (AWG21) to 1,0mm² (AWG18)

3000 V的截面:截面>1,0mm²(AWG18)

3000 V : Sections > 1,0mm² (AWG18)


3.最小弯曲半径  Min. bending radius

固定安装:5xD

Fixed Installation: 5xD

移动电缆:
·从0.5mm²到16mm²:7.5xD
·从25mm²:10xD

Moving cable:
· From 0,5mm² to 16mm²: 7,5xD
· From 25mm²: 10xD
4. 工作温度Tª(导体) Operating Tª (conductor)
-40°C to +80°C
5. 动态安装的特点 Characteristics in dynamic installations

最高速度:300米/分钟
Maximum speed: 300 m/min

最大加速度:50米/秒2

Maximum acceleration: 50 m/s²

链条最大长度:15米(水平)

Maximum lenght of the chain: 15 m (horizontal)
弯曲生命周期:6.000.000

Life cycle in flexion: 6.000.000

构造 Structure
1. 导体 Conductor

柔性裸铜线,单根铜丝最小直径0.1mm

Single copper wire with a minimum diameter of 0.1mm
2. 绝缘 Insulation

PE ,TPE ,PUR

区分:黑色编号+黄色/绿色

Identification: Black numbered + Yellow/Green

3.包裹 Assembly
无纺布缠绕
Non-woven textile tape casing over the assembly
4. Outer sheath

聚氨酯 Polyurethane

灰色,黑色

Grey ,Black

标准/属性 Standards / Properties
1. 参考  Ref. for construction/drawing
·从0.5mm²(AWG21)到1,0mm²(AWG18)的截面:UL 80°300V - CSA AWM I / II A / B 80°C 300V
·截面>1,0mm²(AWG18):UL 80°300V - CSA AWM I / II A / B 80°C 300V
· Sections from 0,5mm² (AWG21) to 1,0mm² (AWG18): UL 80° 300V - CSA AWM I/II A/B 80°C 300V
· Sections > 1,0mm² (AWG18): UL 80° 300V - CSA AWM I/II A/B 80°C 300V
2. 阻燃Flame Retardant
UNE-EN 60332-1 (IEC 60332-1)
CEI 20-35
UL VW-1
CSA FT1
3.无卤素 Halogen free
UNE-EN 60754-1 (IEC 60754-1)
CEI 20-37
4. 耐油和碳氢化合物 Oil and hydrocarbon resistant
UL 1581
VDE 0472 part 803 A/B
HD 22.10 S1
CNOMO E.03.40.150N
5. 防水 Water resistant
UL 1581
IEC 60811
6. 耐弱酸碱低腐蚀性Low corrosivity
UNE-EN 60754-2 (IEC 60754-2)
(pH >= 4,3 ; conductivity =< 10µS/mm)
