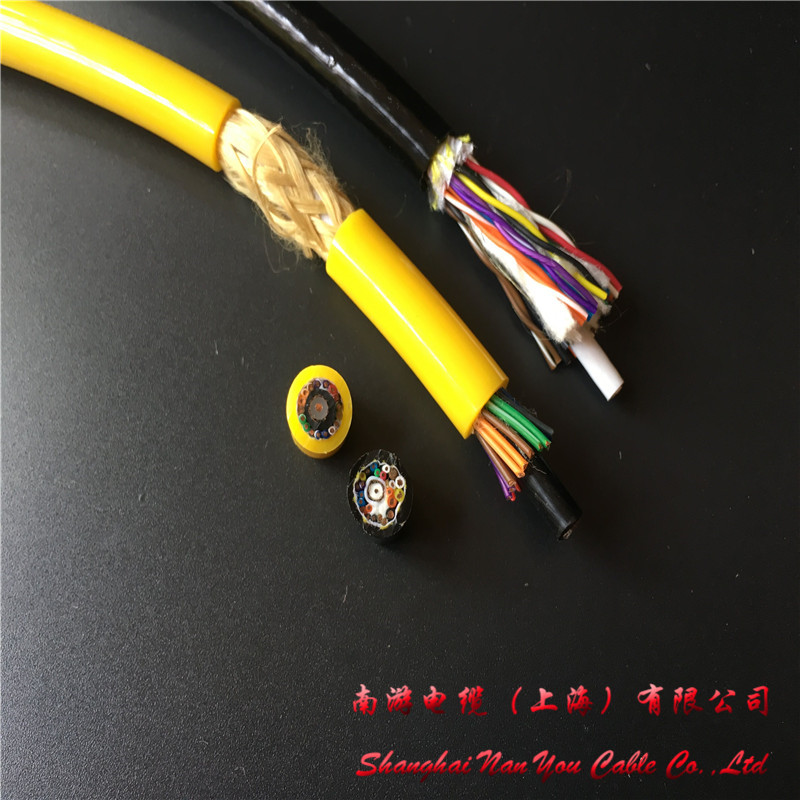

水下视频线电缆

类别:防海水电缆日期:2018-08-14
我要分享
水下视频线电缆

Dynamic values (动态参数)

//www.igus.com.cn/R05/staticContent/iProWeb/daten/img/cf_symbol_01_neu_nur_R.gif

Bending radii

(弯曲半径)

Flexible(移动弯曲)  8 x d mm
fixed
(固定)  5 x d mm

//www.igus.com.cn/R05/staticContent/iProWeb/daten/img/cf_symbol_02.gif

PVC Cable Temperature

(PVC电缆温度)

flexible (移动弯曲)-5°C to+70°C (in line with EN 60811-504)
rigid
(固定)-20°C to +70°C (in line with DIN EN 50305)

//www.igus.com.cn/R05/staticContent/iProWeb/daten/img/cf_symbol_02.gif

PUR Cable

Temperature

(聚氨酯电缆温度)

flexible (移动弯曲)-25°C to+80°C (in line with EN 60811-504)
rigid
(固定)-40°C to +80°C (in line with DIN EN 50305)

//www.igus.com.cn/R05/staticContent/iProWeb/daten/img/cf_symbol_03.gif

 Moving speed

(移动速度)

 2 m/s

Cable design (电缆组件)

//www.igus.com.cn/R05/staticContent/iProWeb/daten/img/cf_symbol_12.gif

Conductor

(导体)

Bare copper stranded wire bending resistance / Tinned copper wire

(裸铜丝绞线抗弯折/镀锡绞合铜线)

//www.igus.com.cn/R05/staticContent/iProWeb/daten/img/cf_symbol_14.gif

conductor insulation

(导体绝缘)

PVC / PE / TPE / PUR

//www.igus.com.cn/R05/staticContent/iProWeb/daten/img/cf_symbol_16.gif

conductor twisting

(导体扭距)

Wires in short pitches stranded around a core with good tensile strength.

(短间距的芯线绕着优秀的抗拉强度核心)

//www.igus.com.cn/R05/staticContent/iProWeb/daten/img/cf_symbol_17.gif

conductor colors

(导体颜色)

Black cores with white numbering, one core green-yellow.

(黑白芯线,黄绿地线)

//www.igus.com.cn/R05/staticContent/iProWeb/daten/img/cf_symbol_20.gif

Fill area

(填充区)

PVC core rope/Kevlar fiber/Polyester yarn

(PVC芯绳/凯夫拉纤维/聚酯纱)

//www.igus.com.cn/R05/staticContent/iProWeb/daten/img/cf_symbol_22.gif

Mask region

(屏蔽区)

Flexurally resistant braid made from tin-plated copper wires. Cover about 75% linear.(镀锡导体编织铜网屏蔽,覆盖率约75%)

//www.igus.com.cn/R05/staticContent/iProWeb/daten/img/cf_symbol_36.gif

Outer jacket

(外被/外护套)

Improved PUR  Colour: orange / gray / black

(改进型聚氨酯,颜色:橙色/灰色/黑色)

Electrical values (电容参数)

//www.igus.com.cn/R05/staticContent/iProWeb/daten/img/cf_symbol_06.gif

Nominal voltage

(标称电压)

300/500 V

450/750 V

//www.igus.com.cn/R05/staticContent/iProWeb/daten/img/cf_symbol_07.gif

Test voltage

(测试电压)

2500V (in line with DIN EN 50396)

Properties  性能

//www.igus.com.cn/R05/staticContent/iProWeb/daten/img/cf_symbol_05.gif

UV-resistant

(紫外线)

Medium

(较好)

//www.igus.com.cn/R05/staticContent/iProWeb/daten/img/cf_symbol_08.gif

Oil(油)

Oil-resistant (following DIN EN 50363-10-2), Class 3.

(耐油)

//www.igus.com.cn/R05/staticContent/iProWeb/daten/img/cf_symbol_39.gif

Offshore

(海洋)

Anti seawater (防海水)

//www.igus.com.cn/R05/staticContent/iProWeb/daten/img/cf_symbol_09.gif

flame-retardant

(阻燃)

According to IEC 60332-1-2, CEI 20-35, FT1, VW-1.
