拖链电缆-移动控制电缆

类别:拖链电缆日期:2019-08-19
我要分享
拖链电缆 DRAG CHAIN CABLE



超柔性拖链控制电缆,用于动态应用,如机器的移动部件或无拉应力的电缆拖链,在室内安装。阻燃,耐大多数工业领域常用的油和化学品。

Extra-flexible control cable for use in dynamic applications such as moving parts of machines or cable chains without tensile stress, in indoor installations. Flame retardant and resistant to most oils and chemicals generally used in the industrial field.





技术特点 Technical characteristics
1.工作电压 Operating voltage
300/500 V.
2. 弯曲半径 bending radius


固定安装:5xD

Fixed Installation: 5xD

动态安装:10xD

Dynamic installation: 10xD

3.操作 (导体) Operating  (conductor)


固定安装:-30°C + 70°C

Fixed installation: -30°C +70°C

动态安装:-5°C + 70°C

Dynamic installation: -5°C +70°C


4.弯曲循环,最大 Bending cycles, max.

3百万余次 ; 3 millions


5.移动距离,最大 Moving distance, max.
10米 ; 10m

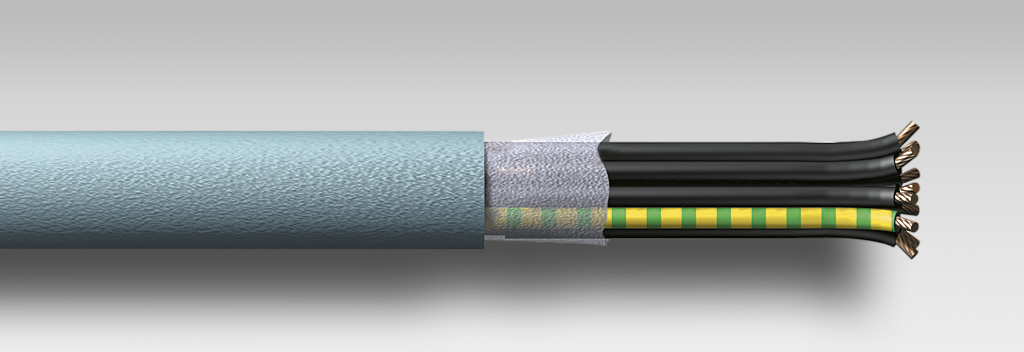

构造 structure


1.导体 Conductor

柔性裸铜线,单根铜丝最小直径0.1mm

Extra flexible bare copper wires

Single copper wire with a minimum diameter of 0.1mm


2.绝缘 Insulation

PVC

区分:黑色编号+黄绿色

Identification: Black numbered + Yellow/Green




3.结构 Assembly

芯线以同心层铺设在一起

Insulated conductors laid up together in concentric layers


4.外护套 Outer sheath

PVC

颜色:灰色 ,黑色

Colour: Grey , black



标准 Standards
1.耐油 Oil resistant
EN 60811-404


标准/属性 Standards / Properties


1.阻燃 Flame Retardant

VDE 0482-332-1-2(IEC 60332-1-2)
